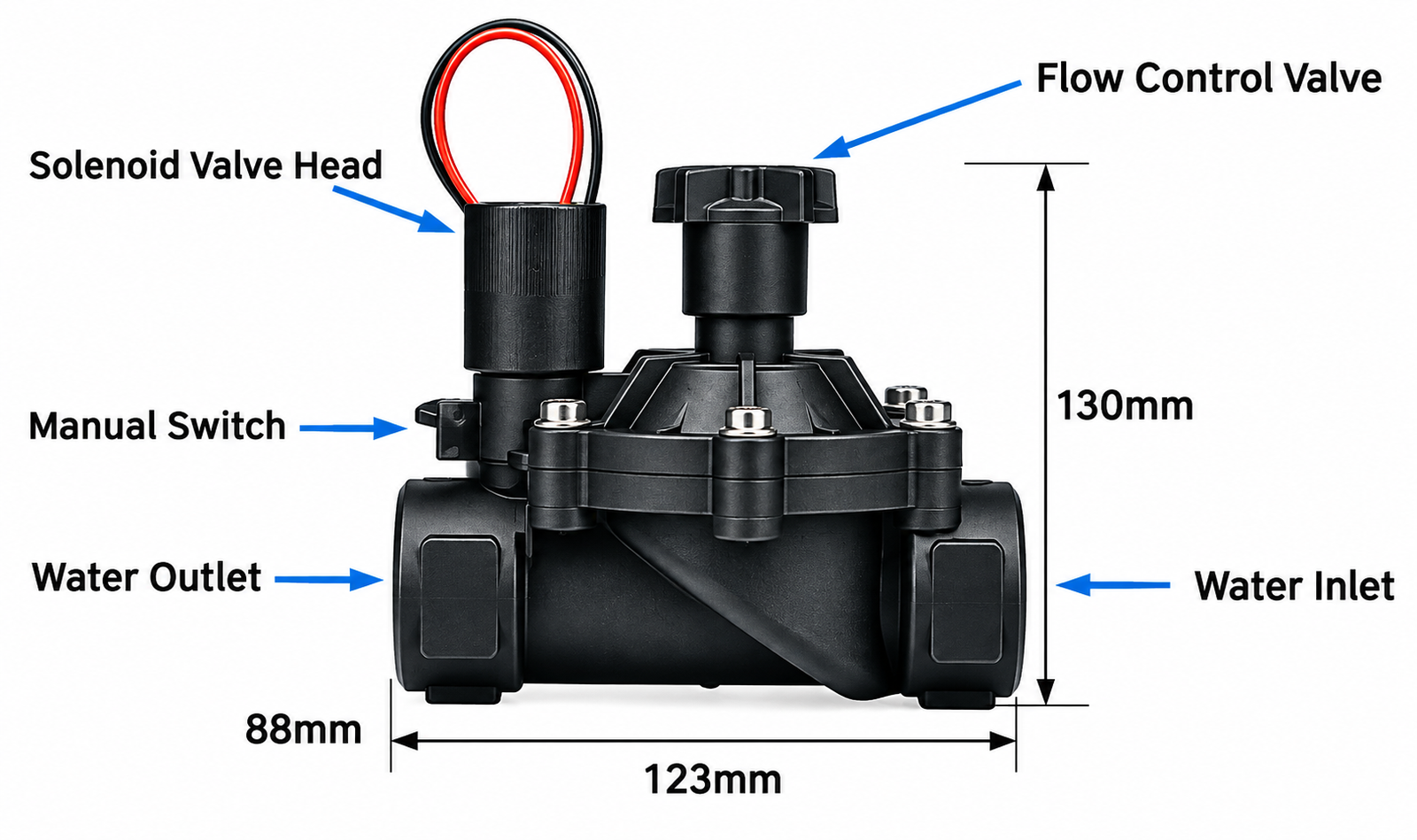

EVD 100
EVD 100
| Technical Specifications | |
|---|---|
| DC Solenoid valve | 1" |

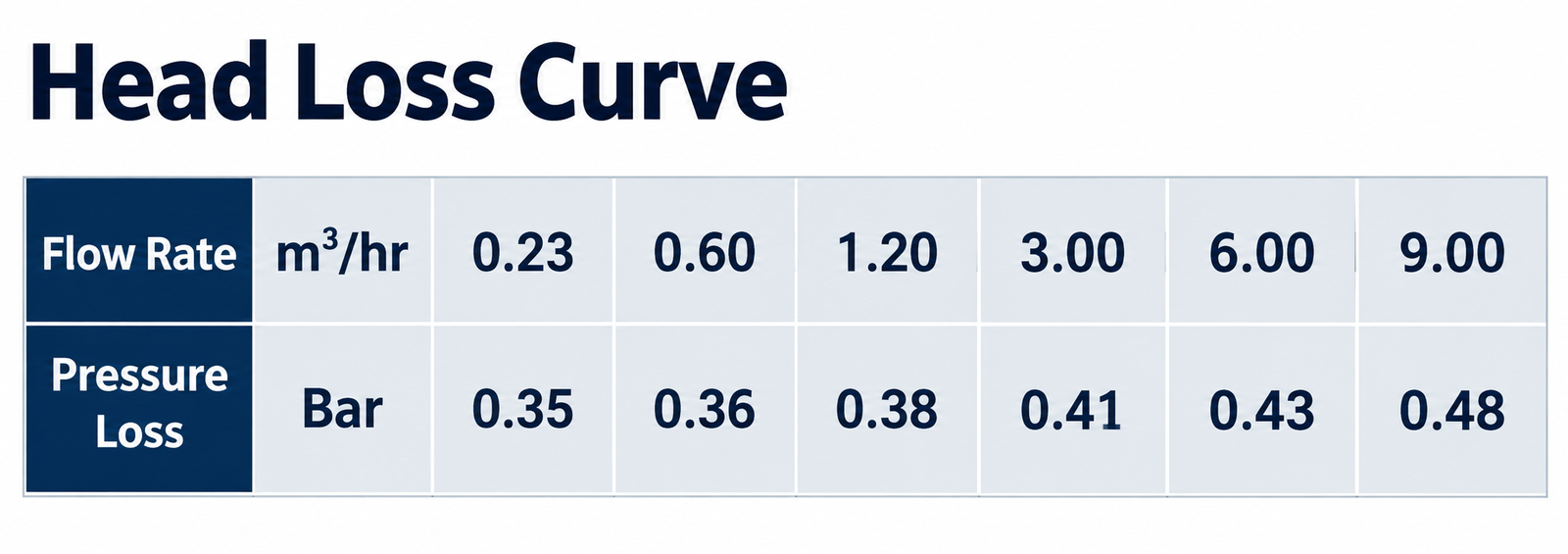

| Flow | 1.14 - 9.08 m³ / hr |
| Pressure Range | 0.5-8Bar |
| Fluid Temperature | ≤ 60 °C |
| Valve Body Material | Nylon filled with glass fiber |
| Diaphragm Material | EPDM Rubber |
| Drive voltage | DC 12V ± 10% (9-15V) |
| Pulse Width | < 100 MS |
