EVA 75

Technical Specifications
AC Solenoid valve	3/4"
Flow	0.98 - 8.66 m³ / hr
Pressure Range	0.5-8Bar
Fluid Temperature	≤ 60 °C
Valve Body Material	Nylon filled with glass fiber
Diaphragm Material	EPDM Rubber
Drive voltage	AC 24V ± 10% ; 50/60HZ
Opening Current	0.3A
Holding Current	0.18A

Quantity:

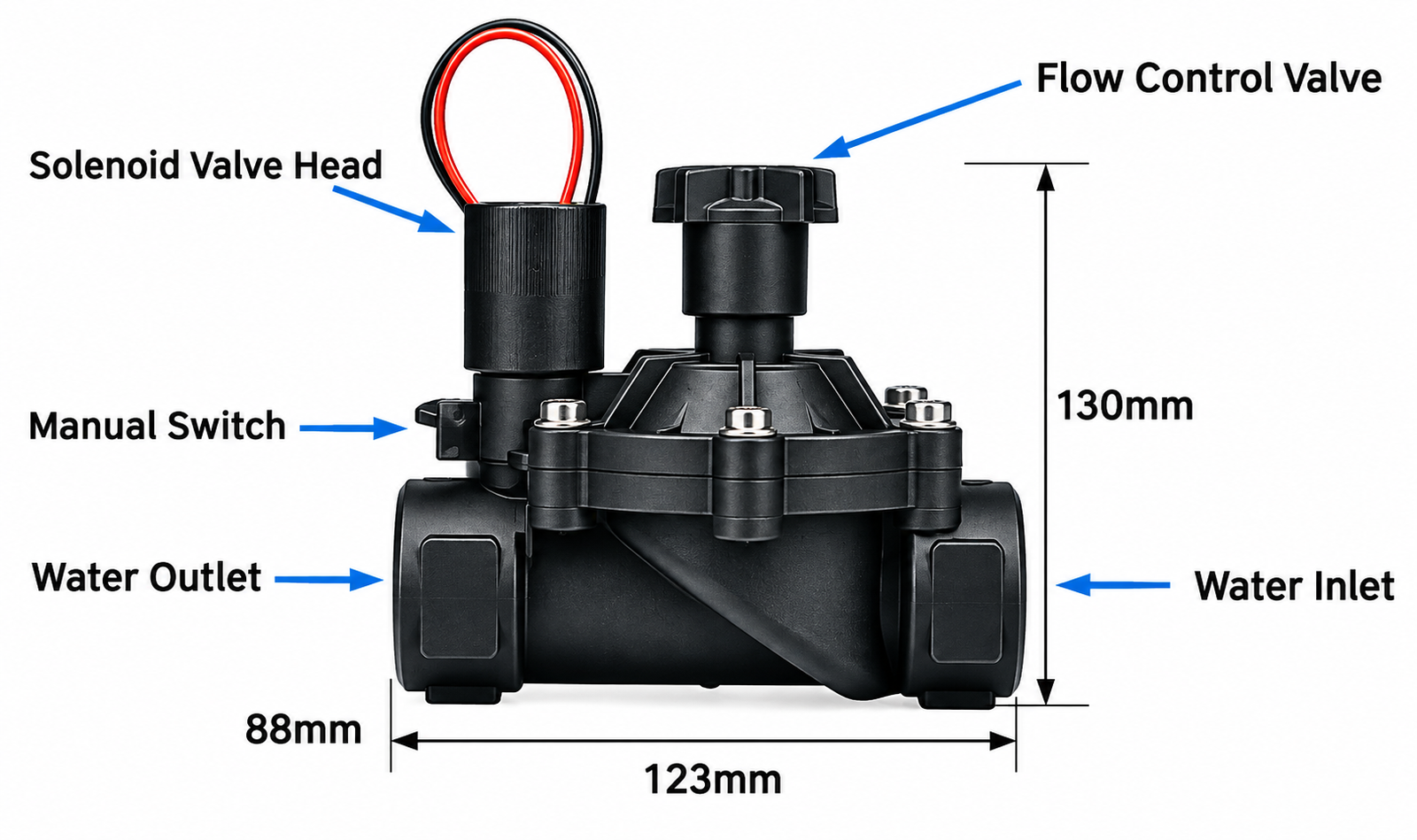

Manual flow adjustment, clockwise to reduce, counter clockwise to increase
Manual closing of solenoid valve
Manual switch: When the switch is vertical, it is in the open state, and the solenoid head is invalid; when the switch is horizontal, it is in the closed state, and the solenoid head is available
Strong durability, resistance to chemical corrosion and cavitation
Smooth opening, effectively preventing water hammer damage
Multi-function selection can adapt to a variety of irrigation controllers
